InvisaTrax® Transport System Basic Set - Secure & Discreet Shipping Solution for E-commerce, Retail & Logistics | Perfect for Small Businesses & Online Sellers

Product Description

The InvisaTrax® Transport system is comprised of a drive chain, track that forms a channel, and magnets. The system includes:

• Interlocking flexible track sections in four lengths,

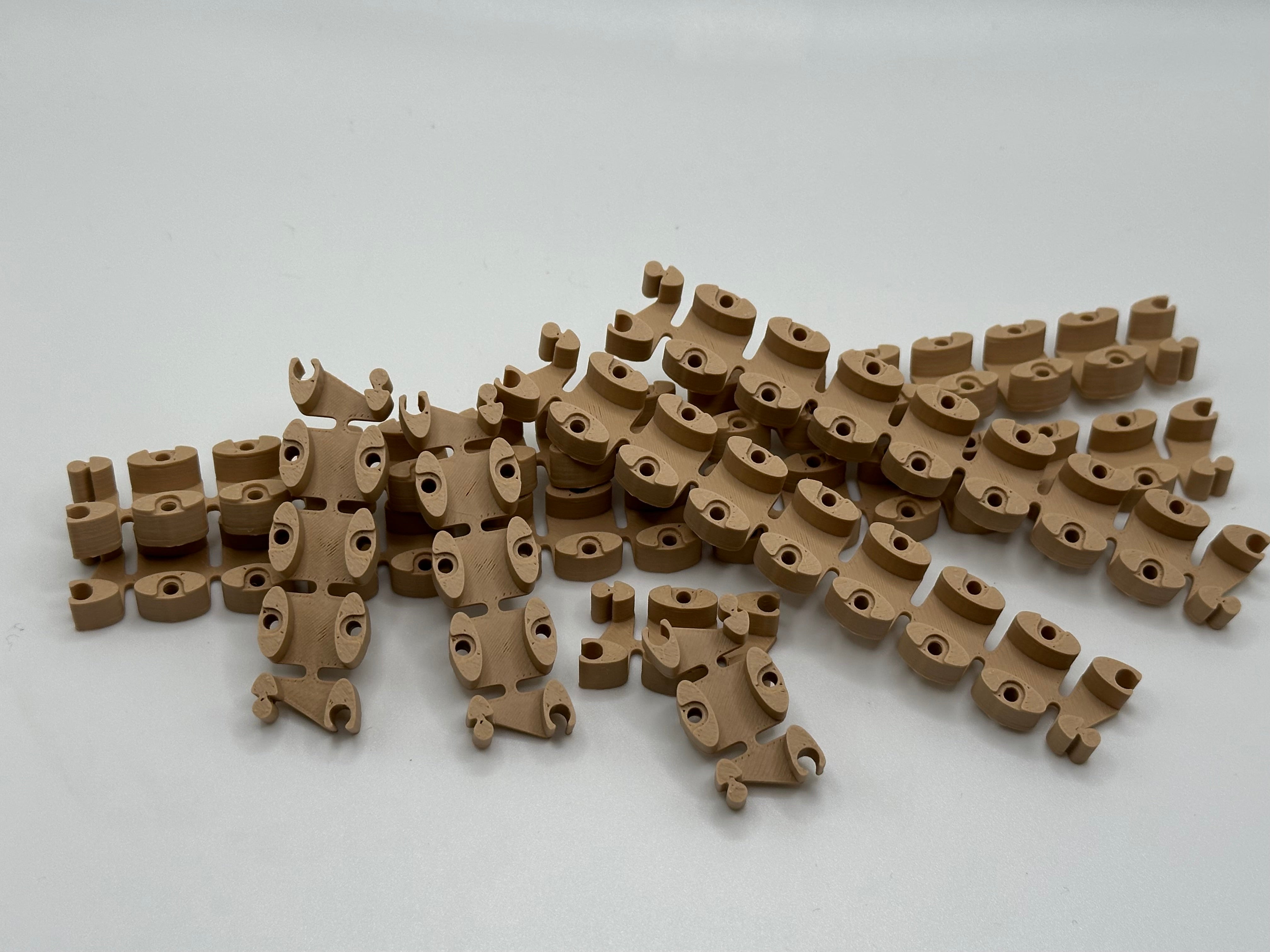

• Snap together chain links with cutouts for magnets,
• A 6v DC motor that moves the chain within the track via the attached gear,
• And a motor driver circuit to control direction and speed of movement.

Almost anything can be transported using the right size magnets, including but not limited to: people, animals, birds, cars, trucks, motorcycles, small boats, cyclists, game board pieces, and more. These objects can be moved as no motors or batteries are required in the actual item; the movement is guided by the track, propelled by the chain, and made possible by the magnets.

The Basic Set has a total running length of approximately 4.5 feet (140 cm).

Detail List of Components

• Track Sections - two (2) each: 2-Unit, 4-Unit, 8-Unit 14-Unit

• Chain Links: 84 3mm SQ: six (6) 2mm RND, three (3) 2-Unit Chain Link Connector

• One (1) Motor Turn 180 degree and one (1) Bearing Turn 180 degree

• One (1) Motor Gear and one (1) Bearing Gear

• One (1) Motor Spacer
• One (1) Bearing

• One (1) set of Brass Sliders

• One (1) 3" x 5" x 0.01" Polycarbonate sheet

• Magnets: ten (10) 3 x 3mm Cube, six (6) 2 x 2mm Disc, ten (10) 2 x 0.5mm Disc

• One (1) Magnetic Viewer

• One (1) N20 6V DC Gear Motor and three (3) 1.6 x 6mm mounting screws

• One (1) Motor Driver Circuit with Speed & Direction control

• Two (2) feet 24 AWG 2-conductor electric wire

• One (1) 1.5 x 45mm Heat Shrink Tube

• One (1) 4 x AA Battery Holder

• One (1) Mini-Screw Driver Set
